Flowserve

Argus

Manufacturer: Germany

High Quality Ball Valves

The brand produces high-quality engineered ball valves for the harshest conditions, including severe service applications prone to abrasion, corrosion, and erosion. Specifically, Argus valves are commonly found in critical liquid and gaseous services in chemical, petrochemical and refinery operations. They fulfill the highest demands of fugitive emissions (FE) under ISO 15848.

    • Polymer (Unipol,Borstar,Basell)

    • HC

    • Slurry

    • Coal Gasification

    • PDS

    • O&G high-pressure gas

    • HP O2

    • Powder

    • Power Generation

    • PX (IFP/Axens)

    • Solid Handling

    • ESD

  • Metal or Soft seated

    • Carbon Steel

    • Austenic Steel

    • Duplex Steels

    • Special Alloys (Hastelloy, Monel, Inconel, titanium, Evaluated on request)

  • Duplex SS/ hard metal coated

Special and customized design are available for high-pressure, temperature and challenging applications.

FK79 Floating Ball Valves

  • The FK 79 ball valve with its many innovative design features represents the highest standard in valve technology and is designed to meet the API-6D, ANSI 16.34 and BS 5351 requirements

    • DN 15 to 50mm (DIN)

    • DN 1/2” to 2” (ASME)

    • PN 16 to 250 (DIN)

    • Class 150 to 2500 (ASME)

    • -105°C to 650°C / -157°F to 1202°F

FK76M Trunnion Mounted Ball Valves

  • Designed to meet API-6D, ASME B16.34 and ISO 17292 requirements, FK76M delivers durability and low operating torques with a clear
    of sealing and bearing functions. Fire-safe to ISO 10497 and API607 Special and customized designs are also available for

    • Ultimate High Cycle

    • Extreme High Temperature

    • DN 65 to 900mm (DIN)

    • NPS 2-1/2” to 36” (ASME)

    • PN 16 to 160 (DIN)

    • Class 150 to 900 (ASME)

    • -105°C to 650°C / -157°F to 1202°F

HK35 Trunnion Mounted Ball Valves

  • All the benefits of the FK76M in a high-pressure design. Designed to meet API-6D, ASME B16.34 and ISO 17292 requirements.

    • DN 50 to 600mm (DIN)

    • NPS 2” to 24” (ASME)

    • PN 160 to 420 (DIN)

    • Class 900 to 2500 (ASME)

    • -105°C to 650°C / -157°F to 1202°F

McCanna

Manufacturer: U.S.A.

About

McCANNATM specializes in floating trunnion mounted ball valves (TMBVs). With a heritage dating to 1870, the brand manufactured its first valve in 1954 and has since logged many decades of development in new materials, manufacturing processes and valve technology.

    • Corrosive Chemicals

    • Viscous Liquids

    • Gases

    • Acids

    • Alkalis

    • Hydrocarbons

    • Cryogenic

    • Chlorine

    • Vacuum

    • Hydrogen peroxide

    • Steam

    • Liquefied Propane Gas

    • Purified terephthalic acid (PTA)

    • Oxygen

    • Fire protection

    • Fugitive emissions

    • Liquid natural gas (LNG)

    • Soft Seats: PTFE, RTFE, PEEK, UHMWPE, TEFZEL

    • Metal Seats: Carbon Graphite, Stellite, Chrome carbide

    • Carbon steel

    • Stainless Steel

    • Alloy 20

    • Titanium

    • Hastelloy

    • Monel and others

  • -196°C to 815°C / - 320°F to 1500°F

McCANNA ball valves are manufactured in a broad range of materials to handle nearly any service.

McCANNASEAL®(S) TOP-ENTRY

    • Floating or trunnion design for inline maintainability

    • Wedge seat design for less wear and longer life

    • Stem seal design complying to ISO 15848 Fugitive emission

    • Self-compensating seats

    • Blow out-proof ball stop for services higher than 500°F

    • Available in uni/bidirectional fire-safe design - McCANNA Seal Fire- safe Y/Z (aka Fire Seal)

    • 1/2" – 20" Reduced Port

    • 1” – 16” Full Port

    • ASME class 150-1500

Trunnion Mounted (T) for PTA

  • PTA - Purified terephthalic acid

    • Trunnion mounted/floating ball combination

    • Smaller sizes covered by floating ball design In-line maintenance and repairability

    • Lower torque for installation of cost-effective actuators

    • Carbon graphite seat offerings

    • 1/2" – 20" Reduced Port

    • 6” – 16” Full Port

    • ASME class 150-300 design

    • 6” & 8” ASME Class 1500 derated

CryoSeal® Fire Safe CX - Floating Ball Valves

  • The McCANNA Cryogenic Ball Valve is the optimum solution for cryogen flow isolation at temperatures as low as -196°C (-320°F), including LNG liquefaction, transportation, and regasification

    • Special low-torque cryogenic seat profile

    • Stem seal design complying to ISO 15848 Fugitive emission

    • Seat design to meet BS 6364 seat leakage

    • Vented body for cavity pressure relief

    • 1/2" – 8" Reduced Port

    • 1/2" – 6” Full Port

    • Class 150 to 600

Edward

Manufacturer: U.S.A.

Edward high-performance isolation valves are designed for critical service applications with temperatures exceeding 1,000°F and pressures surpassing 10,000 psi. The product line includes a variety of gate, globe, check, blowdown, bolted bonnet, nuclear and univalves from Edward, Equiwedge® and FliteFlow.

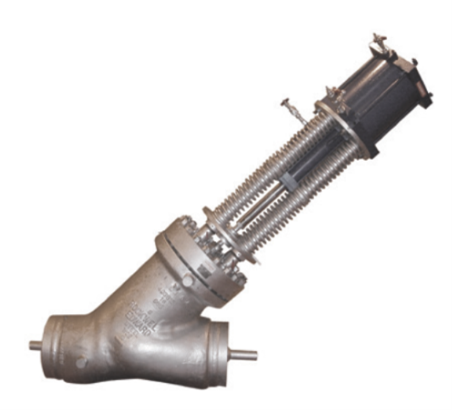

Flite-Flow Main Steam Isolation Y-Pattern Globe Valves

  • The Flite-Flow Main Steam Isolation Valve is a high-performance, service-proven technology designed for use when Y-pattern globe are chosen for nuclear applications

    • NPS 24 to 34

    • DN 600 to 850

    • 600 to 900

    • PN 110 to 260

  • Metal

    • Petrochemicals

    • Power : NuclearSteam, Geothermal

Univalve Piston (Lift) Check Valves

  • The Univalve Piston Check Valve is reliably designed for high-temperature and high-pressure uses in a variety of environments

    • DN 15 to 100 NPS 1⁄2 to 4

    • Class 1690, 2680 and 4500

    • PN 290, 460 and 760

  • Metal

    • -29°C to 816°C (-20°F to 1,500°F)

  • A105, F22, F91, F316, F347

    • Oil & Gas : Downstream Processing

    • Power: Combined Cycle, Conventional Steam, Geothermal, Nuclear

    • Petrochemicals

Equiwedge MSIV/MFIV Gate Valves

  • Compliant with ASME Section III and RCC-M design codes, Edward Equiwedge flexible split wedge gate valve is the industry standard for fast-acting, reliable isolation of main steam or main feedwater lines

    • Extended service life enabled by simplified modular design with no external hose or piping connections and a 12-year maintenance cycle

    • NPS 4 to 42

    • DN 100 to 1051

    • 601 to 1500

    • PN 110 to 260

    • -29°C to 566°C (-20°F to 1050°F)

  • Metal

    • Petrochemicals

    • Power

TFlite-Flow Y-Pattern Globe Valves

  • Reliable, stop and stop-check valve designed to provide maximum capacity and minimum leakage in high-pressure, high-temperature Available in Cast (standard) and Forged (optional) configurations.

    • Size Range: DN 65 to 800 ; NPS 2½ to 32

    • Pressure Class Range: PN 50 to 760 ; Class 300 to 4500

    • Seating Material: Metal

    • Size Range: DN 250 to 400 ; NPS 10 to 16

    • Pressure Class Range: PN 420; Class 2500

    • Seating Material: Metal

    • High Temperature Service — F91 material

    • Chemicals : Petrochemicals

    • Oil & Gas : Downstream Processing

    • Power: Combined Cycle, Conventional Steam, Geothermal

Edward Bolted Bonnet Y-Pattern Globe Valves

    • Durable, high-performance small bore globe valve with a bolted-

    • Increased uptime from construction material hardness with a low coefficient of friction that results in reduced torque, minimal stem wear elimination of galling

    • Lower maintenance costs due to bolted bonnet, four-bolt design

    • Longer service life from an integral hardened seat and secondary

    • DN 15 to 50

    • NPS 1/2 to 2

    • 800 to 1500

    • -29°C to 565°C (-20°F to 1050°F)

  • Metal

Univalve Y-Pattern Globe Valves

  • Univalve Y-Pattern Globe Valve is designed for maximum flow capacity minimum leakage in high pressure, high temperature applications

    • DN 15 to 100 NPS 1⁄2 to 4

    • Class 1690, 2680 and 4500

    • PN 290, 460 and 760

    • 29°C to 565°C (-20°F to 1050°F)

    • Chemicals : Petrochemicals

    • Oil & Gas : Downstream Processing

    • Power: Combined Cycle, Conventional Steam, Geothermal

Edward Blow-off Y-Pattern Globe Valves

  • Blow-off Y-Pattern Globe Valves are high-performance, blow-off valves designed for applications requiring intermittent operation to remove accumulated sediment from equipment and piping, or to rapidly the boiler water level

    • NPS 1 to 2-1/2

    • DN 25 to 6

    • 300 to 2500

    • PN 50 to 420

    • 29°C to 565°C (-20°F to 1050°F)

  • Metal

    • Chemicals : Petrochemicals

    • Oil & Gas : Downstream Processing

    • Power: Combined Cycle, Conventional Steam, Geothermal

Valbart

Valbart specializes in engineered solutions

The brand is widely known for its API 6A and API 6D trunnion-mounted ball valves (TMBVs) and is also recognized for its production of trunnion-mounted control ball valves (TMCBVs), cryogenic valves, valves for subsea service, twin ball double block and bleed valves, and rising stem, friction-free ball valves.

Rising Stem Ball Valve (RSBV) RISING STEM

  • The oil and gas industry’s choice for applications requiring a mechanically energized metal or soft seat to prevent losses from process contamination or material leakage. Ideal for frequent cycling.

    • DN 25 to 600mm (DIN)

    • NPS 1” to 24” (ASME)

    • PN 10 to 320 (DIN)

    • Class 150 to 2500 (ASME)

  • Metal or soft seated

    • Metal seat tightness up to ANSI Class VI and zero leak

    • Outside screw& yoke design, no special tools for stem packing adjustment needed

    • Helix coil stem ensures friction-free open and close

    • Improved personnel safety from blowout-proof stem that meets international standards of API 600 and 6D

VB2 and VB3 TRUNNION - MOUNTED

  • The Valbart VB2 and VB3 are repairable, bolted body, side-entry, trunnion-mounted ball valves featuring a fixed ball and floating seat rings. Compliant with API 6D and 6A.

    • DN 50 to 1600mm (DIN)

    • NPS 2” to 64” (API 6D Valves)

    • PN 20 to 420 (DIN)

    • Class 150 to 2500

  • Metal or soft seated

    • -196°C to 400°C (-320°F to 750°F)


    • Oil & Gas

      • Midstream Transportation

      • Downstream Processing

Trunnion Mounted Control Ball Valve (TMCBV) ROTARY CONTROL VALVE

  • Cost-efficient, compact gas valve that provides excellent flow capacity and high rangeability.

    • 4” to 56”

    • ASME class 150, 300, 600, 900, 1500

    • API 3000, 5000, 10000

  • Tungsten Carbide

    • Wide range of trim designs based on industry-proven technologies

    • Metal to metal, tungsten carbide-coated seats provide ANSI FCI 70-2 class V shutoff

  • -196°C to 450°C (-320°F to 842°F)

  • Combined Cycle

  • Petro Chemicals

    • Upstream Exploration & Production

    • Midstream Transportation

    • Downstream Processing

VT1 TOP - ENTRY

  • Valbart top entry ball valves are in-line repairable and ensure bi-directional sealing with two independent floating seats. They feature a double block and bleed, fire safe design and an anti blow-out stem.

    • DN 50 to 1600mm (DIN)

    • NPS 2” to 64” (API 6D Valves)

    • PN 20 to 420 (DIN)

    • Class 150 to 2500

    • -29°C to 565°C (-20°F to 1050°F)

  • Metal or soft seated

  • Oil & Gas

    • Midstream Transportation

    • Downstream Processing

VW1 TRUNNION - MOUNTED

  • The Valbart VW1 is API 6D-compliant, welded-body valve that seals off both seats at the same time and allows bleeding of the entrapped cavity pressure (double block and bleed) with the ball in closed position.

    • DN 50 to 1600mm (DIN)

    • NPS 2” to 64” (API 6D Valves)

    • PN 20 to 420 (DIN)

    • Class 150 to 2500

    • -46°C to 220°C (-50°F to 428°F)

  • Metal or soft seated

  • Oil & Gas

    • Midstream Transportation

    • Downstream Processing

Valtek

Founded in 1965, Valtek revolutionized traditional control valves by adding a high-pressure piston actuator to enable maximum stiffness, plus a simple, one-touch calibration positioner. The result is a superior level of process control and simple, intuitive operation, resulting in more efficient and profitable operations. Reliability, long life, parts interchangeability, easy maintenance and prompt delivery are hallmarks of the Valtek.

MARK ONE

  • Superior performance in liquid and gaseous services, with easy, fast and inexpensive maintenance.

    • Small, compact, light-weight body and actuator package

    • Stiff and high-thrust cylinder actuator offers position accuracy, repeatability, assured response

    • Broad solutions envelope with significant flexibility

    • Valve Type: Linear Globe

    • Size Range : DN 15 to DN 900 ; NPS 0.5” to 36”

    • Pressure: PN 10 to PN 400 ; Class 150 to 2500

    • Material : Carbon Steel; Stainless Steel; Special Alloys

    • Temperature: -196°C to 815°C ; -320°F to 1500°F

  • Handles a wide selection of process control applications for flow, pressure, and temperature including

    • Corrosive fluids

    • Cryogenics

    • Steam

    • Water

    • Multiphase

    • High temperatures

    • Erosion

    • Gases

    • High-pressure drops

MARK 200

  • Linear Globe/Angle Control Valves

    • High-pressure, maximum capacity with smaller and more cost-effective valve sizes

    • Cavitation control/noise attenuation

    • Wide variety of noise abatement and anti-cavitation trims

    • Severe service solutions

    • Longer strokes for finer control

    • Adept handling of extreme pressure drops

    • Short lead time. On-time delivery

    • Size Range : 2” to 20”

    • Pressure Class Range : 900 to 2500

    • Temperatures: -196°C to 815°C (-320°F to 1,500°F)

  • Petro Chemicals: Organic & Inorganic / Specialty (Fine & Consumer)

    Power: Combined Cycle/ Biomass & MSW / Conventional Steam

    Oil & Gas: Upstream Exploration&Production /MidstreamTransportation

    General Industries: Pulp & Paper / Food and Beverage

ShearStream HP

  • The Valtek ShearStreamTM is a segmented, ball control valve that provides exceptional control and rangeability for the process industries.

    • Segmented ball controls very low flow rates and can open up to large flow rates, resulting in a 300:1 turndown

    • Segmented ball provides shearing action as it moves through the seat to cut through debris and provide reliable shutoff

    • Metal, soft, and heavy duty seat options provide reliable tight shutoff for a variety of applications and process conditions

    • Valve Type: Segmented Ball Valves

    • Size: DN 25 to DN 400 ; NPS 1" to 16"

    • Pressure: ASME Class 150, 300, 600

    • Material: Carbon Steel; Stainless Steel ; Other Alloys

    • Temperature: -46 °C to 316 °C; -50 °F to 600 °F

  • Power - Conventional Steam / Chemical / Oil &Gas / Pulp & Paper

MARK TWO

  • Fabricated from bar stock, the Mark Two is an extremely versatile automatic control valve. It is available in many different configurations with short lead times, even in high-pressure classes or special alloys.

    • Application versatility arising from numerous body styles, end connections, bonnet types and materials of construction

    • Reduced maintenance owing to top-entry trim with clamped-in seat ring and double stem-guided design, which eliminates contact between plug& seat retainer

    • Parts interchangeability with Mark One Series valves

    • Size Range: DN 15 to 150 ; NPS 1/2 to 6

    • Pressure Class Range: PN 10 to 400; Class 150 to 2500

    • Temperature: -196°C to 815°C (-320°F to 1500°F)

FLOWTOP

  • High-performance, general application valve coupled with high-thrust FlowAct pneumatic diaphragm actuator.

    • Excellent control performance with precision machined plug contours & long stroke lengths

    • Easy upgrade from standard trims to low noise or cavitation control trims

    • Minimal vibration and wear of trim through sturdy plug design

    • Valve Type : Linear Globe

    • Size : DN15 to DN400 ; NPS 0.5“ to 16”

    • Pressure : PN 10 to PN40 ; Class 150 to 300

    • Material : Carbon Steel; Stainless Steel ; Special Alloys

    • Temperature : -196 °C to 538 °C; -320 °F to 1000 °F

    • Chemical, Refinery, Power, HVAC, Food and beverage industries

    • Zero emissions application options through bellows seal solution

    • TA-Luft certified for fugitive emission leakage class greater than 10-8 mbarl/s.

Valdisk

  • High Performance Butterfly Control Valves A double offset butterfly valve used whenever high capacity is needed with the lowest possible pressure loss

    • High-performance throttling — High-thrust cylinder actuator, eccentric-cammed disc for unmatched performance

    • Greater throttling accuracy —Single pivot-point, splined shaft minimizes lost motion between shaft and actuator, ensuring greater accuracy

    • Improved uptime Long-lasting, bubble-tight shutoff for improved leakage resistance

    • Reduced maintenance costs — Double-offset disc design minimizes seat and disc wear and prolongs service life while reducing leakage

    • Valve Type: Butterfly Control Valves

    • Size: DN 80 to DN 600 ; NPS 3" to 24"

    • Pressure: ASME Class 150, 300, 600, 900, 1500; DIN PN 10 to 40

    • Temperature: -29 °C to 649 °C;-20 °F to 1200 °F

  • Best for fibrous slurries, liquids, gas and steam applications requiring outstanding performance under extreme pressures and temperatures

MARK 100

  • Linear Globe/Angle Control Valves Large control valve design with features suited for maximum capacity Cv and severe application solution.


    • Higher Cv capacity allows for smaller,more cost effective valve sizes

    • Easy maintenance, multiple design options with clamped-in, self-aligning seat ring

    • Wide variety of noise abatement and anti-cavitation trims

    • Type: Linear Globe

    • Size: DN 150 to DN 750; 6” to 30”

    • Pressure: PN 10 to PN 63; Class 150 to 600

    • Material: Carbon Steel; Stainless Steel

    • Temperature: -196 °C to 815 °C ; -320 °F to 1500 °F

  • The industry choice for a simple, reliable, tough globe valve. Handles a wide selection of process control applications for flow, pressure and temperature including

    • Corrosive fluids

    • Cryogenics

    • Steam

    • Water

    • Multiphase

    • High temperatures

    • Erosion

    • Gases

    • High-pressure drops

MaxFlo4

  • The Valtek MaxFlo 4 eccentric rotary plug control valve is for applications demanding higher rangeability, precise control and higher flow capacity.

    • High Cv capacity allows use of smaller envelope

    • Low breakout torque, excellent control

    • Lifts immediately off the seat, decreases seat wear

    • Valve Type: Eccentric Plug Valves

    • Size: DN 25 to DN 300 ; NPS 1" to 12"

    • Pressure: DN PN 10, 16, 25, 40 and 63 ; Class 150, 300, 600

    • Material: Carbon Steel; Stainless Steel

    • Temperature: -100 °C to 400 °C ; -148°F to 750°F

  • Power - Conventional Steam / Chemical / Oil &Gas - Downstream Processing

Positioners

Logix 3800 Digital Positioners

  • Compatible with linear and rotary valves and actuators Logix 3800 digital positioner delivers high reliability in tough environments. Provides unparalleled modularity and versatility within a single unit. Its ability to handle double- or single-acting, linear and rotary applications reduces inventory and operating costs. Installation is simplified with an innovative, one-button quick calibration feature.

    • Air Cap: 30.6 Nm3/h @ 4.1 bar (18 SCFM @ 60 psi)

    • Air Con: 0.082-0.637 Nm3/h@ 4.1 bar (0.048 to 0.375SCFM@60 psi)

    • Repeatability: ≤0.25%

    • Temp: -52°C to 85°C (-61.6°F to 185°F)

    • Materials: Copper free Aluminum, Stainless Steel

Logix 420 Digital Positioners

  • The Flowserve Logix 420 Series of Digital HART® positioners utilize state-of-the-art piezo technology to provide superior performance and reliability. The Logix 420 series can be easily configured using the optional LCD and local buttons, HART handheld, and ValveSight DTM software

    • Local status LEDs

    • Local DIP Switches/Calibration Buttons

    • Auto Tuning with dynamic gain selection

    • Utilizes HART 6 and 7

    • Simple calibration via local interface

    • Optional LCD Display

    • Increased air handling capabilities

Logix 3400MD Digital Positioners

  • The Flowserve Logix® 3400MD Digital FOUNDATION® Fieldbus positioner utilizes state-of-the-art piezo technology to provide superior performance and reliability. The Logix® 3400MD can be easily configured using the local buttons or the ValveSight DTM. Logix® 3400MD has a complete diagnostics package that can alert the user to developing conditions that may cause unnecessary upset conditions in the plant

    • Local status LED's

    • Local DIP Switches/Calibration Buttons

    • Auto Tuning with dynamic gain selection

    • AO, DI, DO, OS, IS and PID blocks are provide in all Logix® 3400MD's

    • Simple calibration via local interface

Logix 3400MD Digital Positioners

    • Easy commissioning with fast, simple configuration

    • Self-calibration and auto-tune with adjustable gain selector

    • Industry standard HART communications

    • Two-stage control design for faster response times and tighter control.

    • Standard Diagnostic functionality through Valve SightTM software

    • Temperature range: -40°C to +80°C

    • Humidity: 0-100% Non-condensing

    • Materials: Aluminum

Learn more about the company:

Learn More
